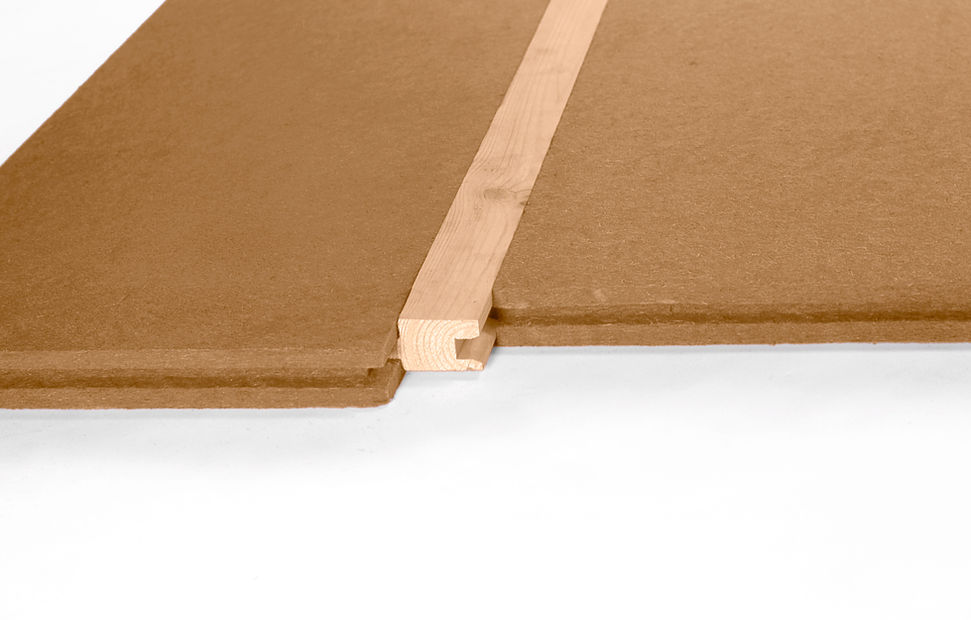

Steico FLOOR

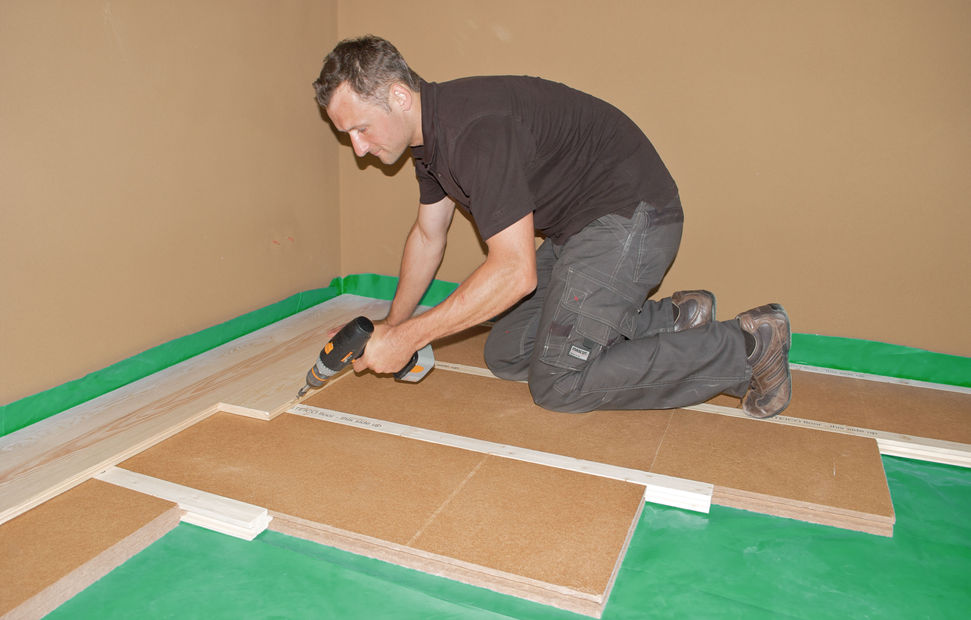

Laying system for plank floors
Applications
• Timber floors
• Concrete floors
Price
40mm = $58.00 / m²
Sold by the m2 / Includes insulation board & timber batten
GST included
Product info
Floor insulation system used for solid wooden floors to avoid acoustic bridging. Good impact sound and heat insulation for various types of floors.
Advantages
• very good impact sound insulation
• with sound-decoupled mounting strip made of high-strength laminated veneer lumber
enables mechanical fixing of the deck to the battens
• additional thermal insulation
• water vapour open
• helps to regulate the indoor climate
• ecological and environmentally friendly
• product made from wood fibres, independently certified by the FSC®
Stocked thickness
40mm insulation boards (Steico Internal T&G boards)
Board dimensions
Steico Internal board - 40mm thick x 1200mm long x 380mm / Tongue & Groove all 4 sides
LVL Timber strips - 2m long x 50mm wide x 35mm thick - Tongue & Groove
R-Values (Declared thermal resistance [(m²*K)/W])
R 1.04 (40mm)
Declared thermal conductivity [W/(m*K)]
0.038
Product format
Steico Floor system is sold by: m2
Pallet Information
104 Tongue & Groove boards per pallet
Gross coverage: 38.304
Net coverage= 36.462
Pallet delivery size
Accompanying timber battens are delivered in a separate pallet
